Registered
2006 chevy trailblazer_lt
Joined
·
252 Posts
Discussion Starter · #1 ·
Hi, the light behind my power windows on both sides of my car are out. I took them apart and found the small removable light bulb in there, which was blown. I cannot seem to find out what kind of bulb this is

I went to Autozone and they had no clue. I thought about the led mod, but I don't have time to do all that.

Does anyone know where I can just get a replacement bulb. Let me know if pictures will help.

Jason


·
Banned
2004 gmc
Joined
·
26,181 Posts
The usual places that have exploded parts views don't show those as replaceable parts. I've never taken mine apart, but I bet some people who have done the LED mod were packrats and saved their bulbs and can speak up.

Pics always help, especially if you have a good macro mode.


·
Registered
2002 chevy trailblazer_ltz
Joined
·
79 Posts
I searched high and low for those same ones. I FINALLY found them, at MOUSER.COM they are 56 cents a peice. The only difference is the shape of the bulb. They are 14V 0.1A. I have replaced them in my truck and my girlfriends and they worked perfectly. Here is the part # 560-DNW1DW10



·
Registered
2006 chevy trailblazer_lt
Joined
·
252 Posts
Discussion Starter · #8 ·
I am not too sure how to do it with the resistors and everything. I guess if there was a really good how to I would think about it. Something that took it from the basics.


·
Registered
2003 chevy trailblazer_ls
Joined
·
497 Posts
I am not too sure how to do it with the resistors and everything. I guess if there was a really good how to I would think about it. Something that took it from the basics.
It's VERY simple.

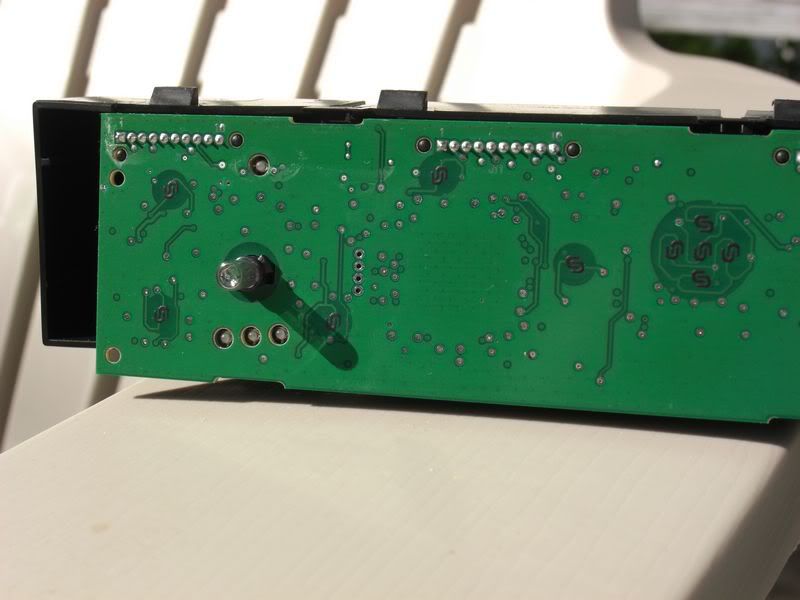

Remove stock incandescent bulb from plastic holder:


Insert the LED into the holder.


Wrap one lead of a 470ohm resistor around the holder, and solder to the longer LED lead. Take some wire and wrap it around the other side of the holder, and solder to the shorter LED lead.


Insert, twist, install, enjoy.
