Hi there,
I know I'm fairly new here as I just got my Trailblazer only a couple of months ago, but I just replaced the stock deck and speakers on the Trailblazer as they were pretty crappy. I searched hi and low for a write up on how to remove all the dash parts without breaking them and couldn't find anything that really described a step by step process, and parts you need to do this. So I figured I would do a write up on a step by step, photo included instructions on how to replace a stock stereo. So here goes!

My vehicle: 2004 Trailblazer LS 4.2L, NO Onstar

First things first, as you're dealing with electrical components disconnect the battery. I know that in some of these pictures the stereo and lights are on, and thats because it was -16c and I had the engine running.... up until I brought out the space heater then disconnected the battery.

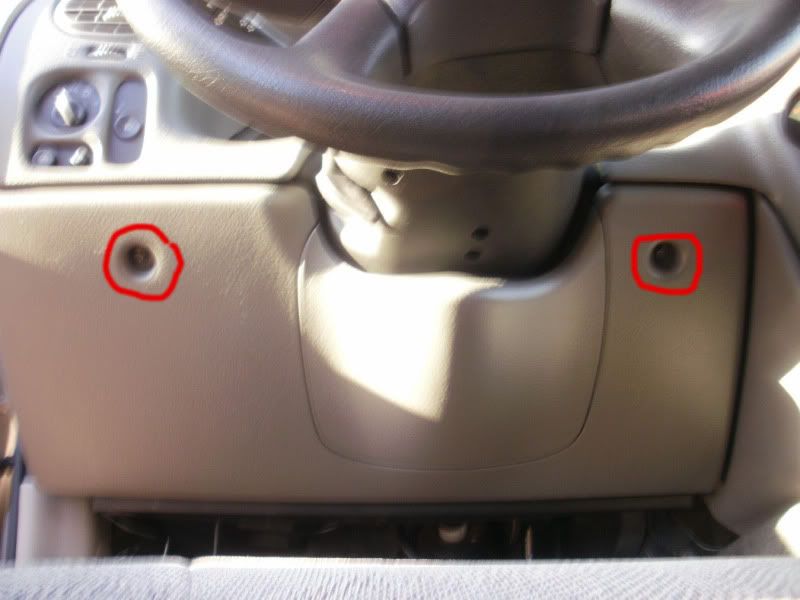

1) Once you've disconnected the battery, start by removing the two lower 9/32 bolts at the bottom of your kick plate (circled here in red)

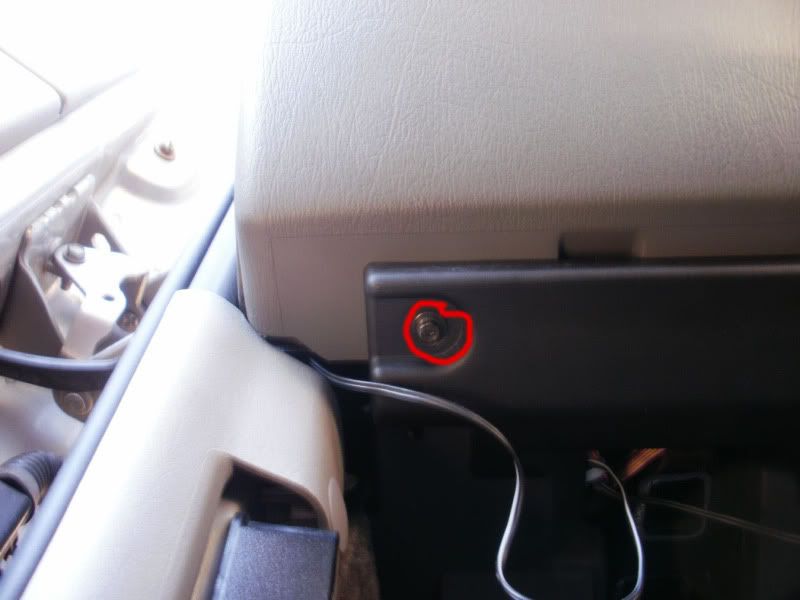

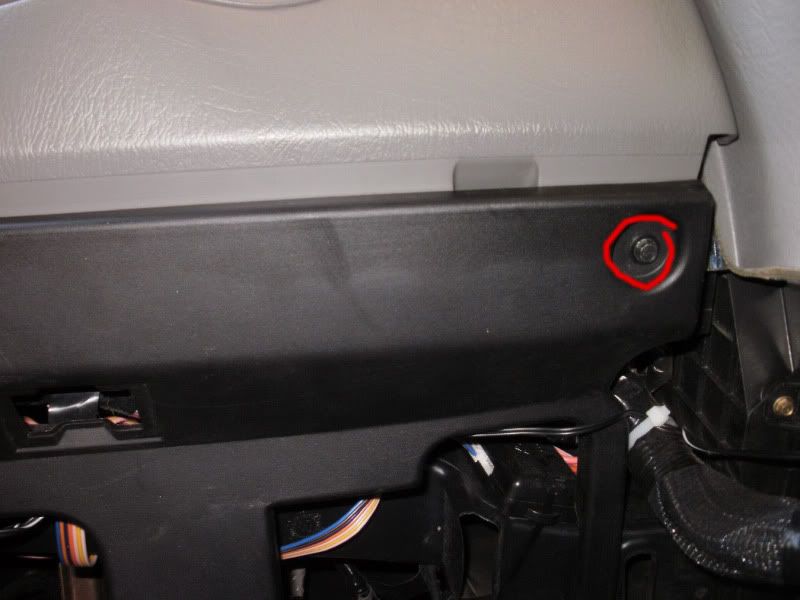

2) Then remove the upper two 9/32 bolts holding the kickplate. The kickplate my fall on you, so just watch your head.


3)Then remove the two bolts holding the gauge surround on the outboard side of steering wheel.

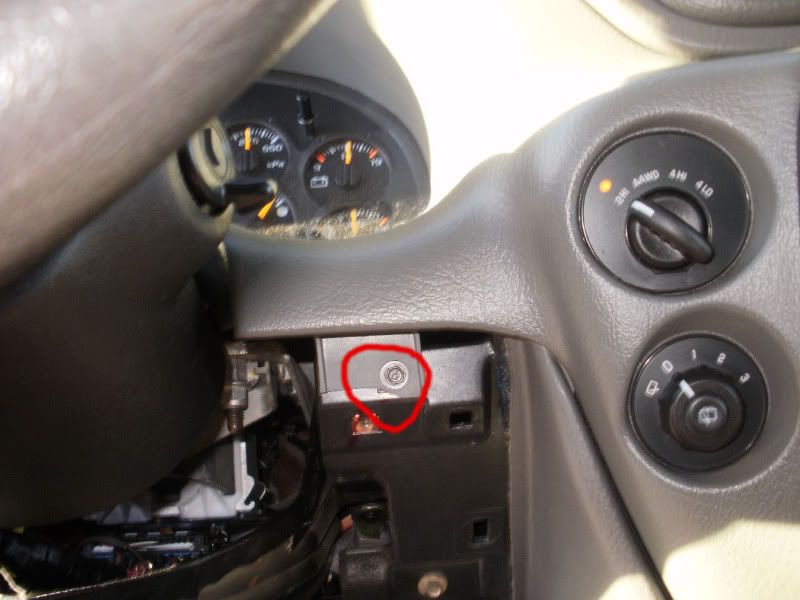

4)Then remove the one bolt on the inboard side of the steering wheel.

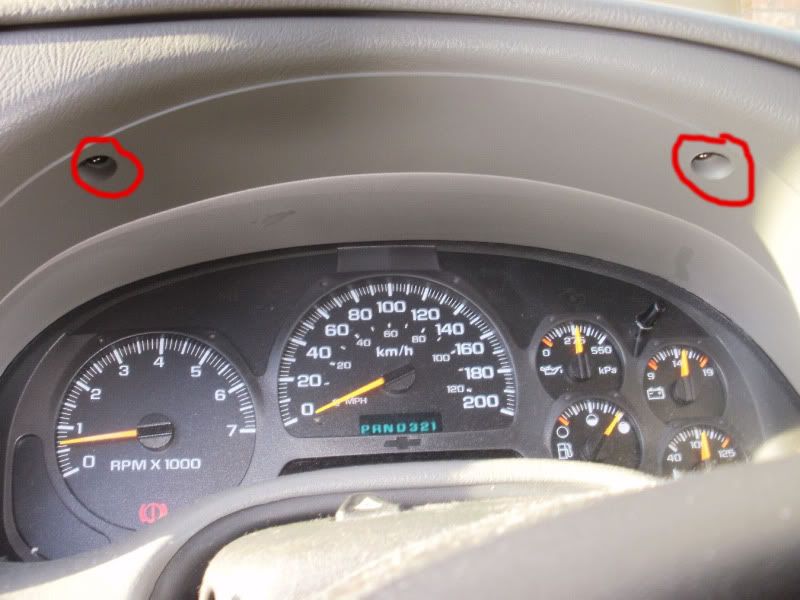

5) Remove the two phillips head screws just above the gauges.


6) Remove the phillips head screw in the pocket right next to the two 12V connectors.

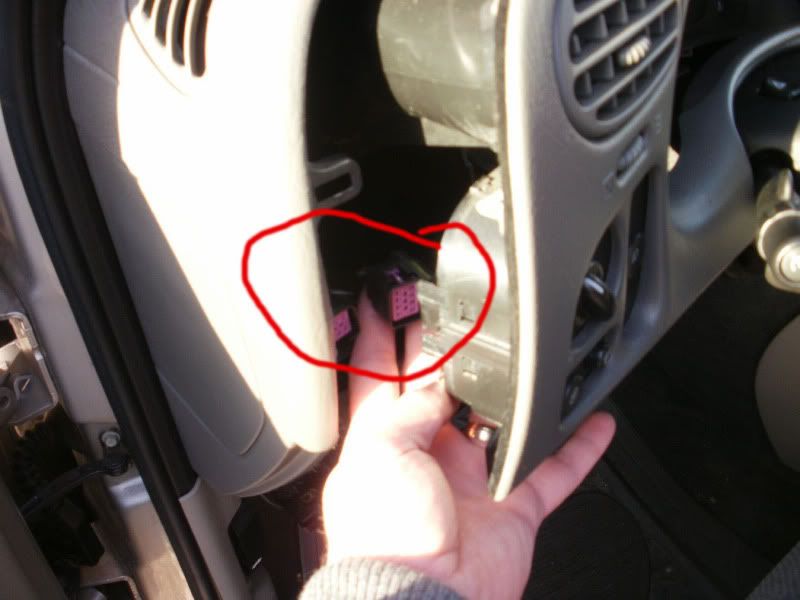

7) Pop out the dash and disconnect the headlight and fog light connectors


8) Removing the dash surround is a bit of a pain in the ass. It will take some convincing. Make sure the column is fully down, and the shifter is all the way back in 1st gear. Once you've got it popped off remove the rear wiper connector, the 4x4 selector connector, and the two 12V connectors.


9)Once you've got the dash out, you can remove the stock stereo unit by removing the 3 bolts that hold it in and disconnect the connectors on the backside of the stereo.

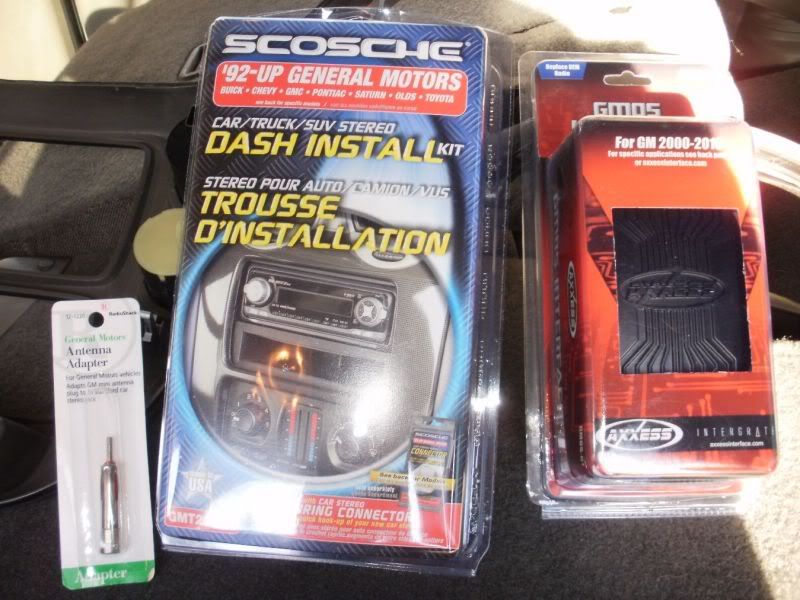

10) Here are the additional items you need to install with your new deck. From left to right:

a) Radio Shack GM antenna adapter - P/N 12-1336 - Cost $5.00
b) Scosche '92-UP Dash install kit - P/N GMT2049F - Cost $16.00
c) Axxess GMOS interface kit - P/N GMOS-01 - Cost $125.00

I'm pretty sure you can find these same parts online for a lot cheaper, but as I was impatient and wanted to install this deck over the Christmas holidays, I decided to bight the bullet and get them from some local shops. I made the mistake of getting the 2004-UP GM dash kit install kit which didn't work, so don't get confused as I did. I've been told that you don't really need the interface kit, that you can tie into your ignition switch, but I figured the Trailblazer has a lot of electronics and not to mention immobilizers, passlock....etc so I didn't want to risk tapping into something I shouldn't have.

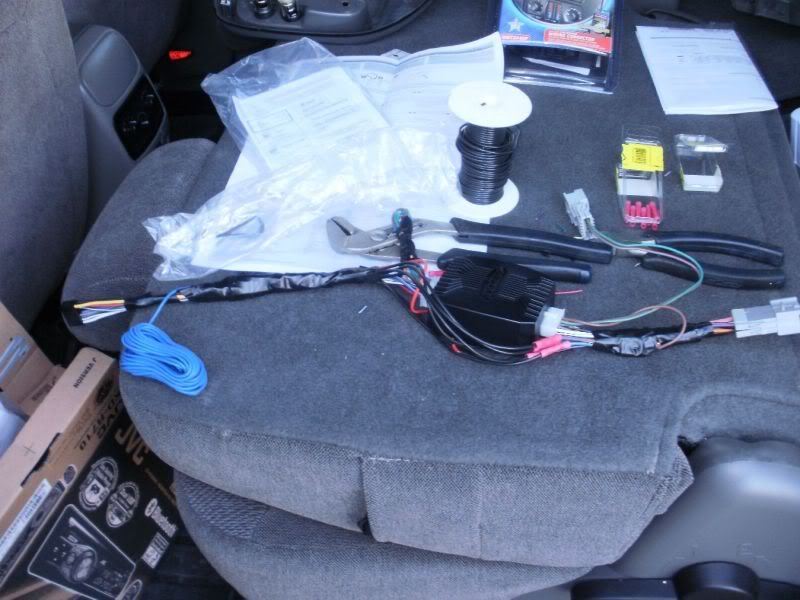

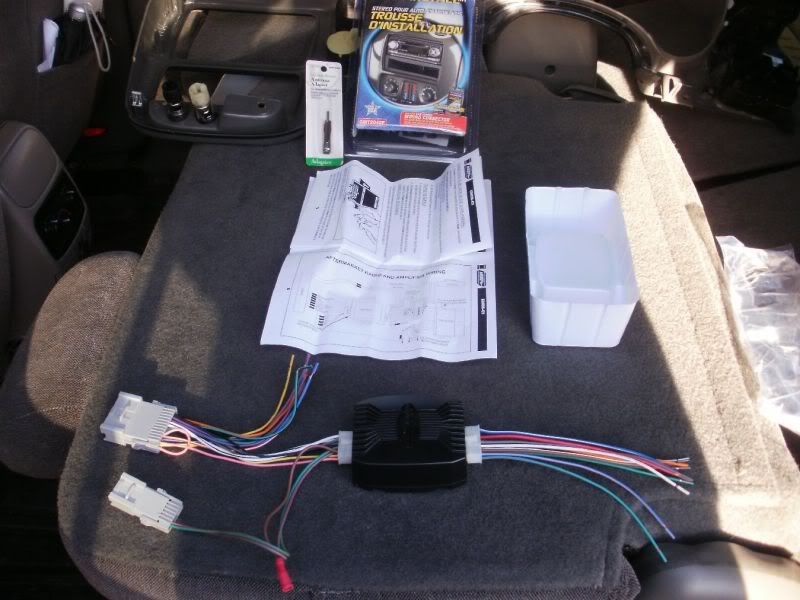

11) This is what you get in the Axxess interface kit. It took some reading and a trip to the local car audio shop to make heads or tails out of this, but its actually fairly basic. The instructions are pretty vague as well, so I'll try my best to describe how this goes together.



12) There are two plugs that have wires that get connected to the aftermarket deck. The strange thing is, they come off of two different connectors. The orange wires you see taped up together in the first picture is the dimmer light and mute wire which my deck doesn't have.

First picture:

Black is Ground
Yellow is 12V
Blue Remote wire for aftermarket/factory amps
Two Greens Rear speakers
Two Purple Rear speakers

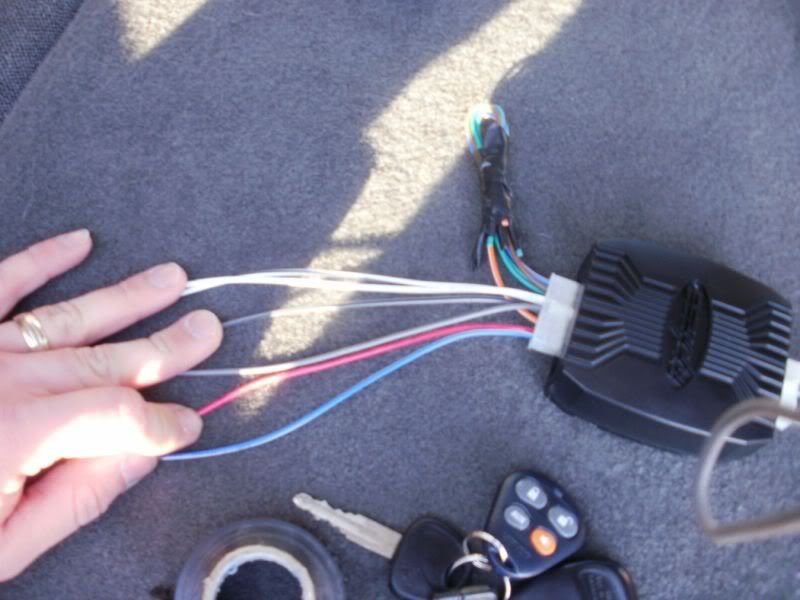

Second picture:
White Wires Front speakers
Grey Wires Front speakers
Red is ignition wire
Blue another blue remote wire
*The taped bundle is for systems that have Onstar and Navunits, mine does not so I taped them off.

All depending on your stereo, the colours of the wires that coming off your deck harness could be different from what the interface has. Fortunately my JVC deck had identical colours as the interface.



13) This is the stereo harness and interface completed. I thought I had a picture before I taped it all together... guess I got a little ahead of myself there! The guy at the local stereo shop said to tie both remote wires together from the deck harness, and both blue wires from both connectors of the interface. I also tied in my own remote wire as I plan on installing an amp and sub later on. The black wires and connectors you see are to extend the wires from the one connector to reach the JVC harness.

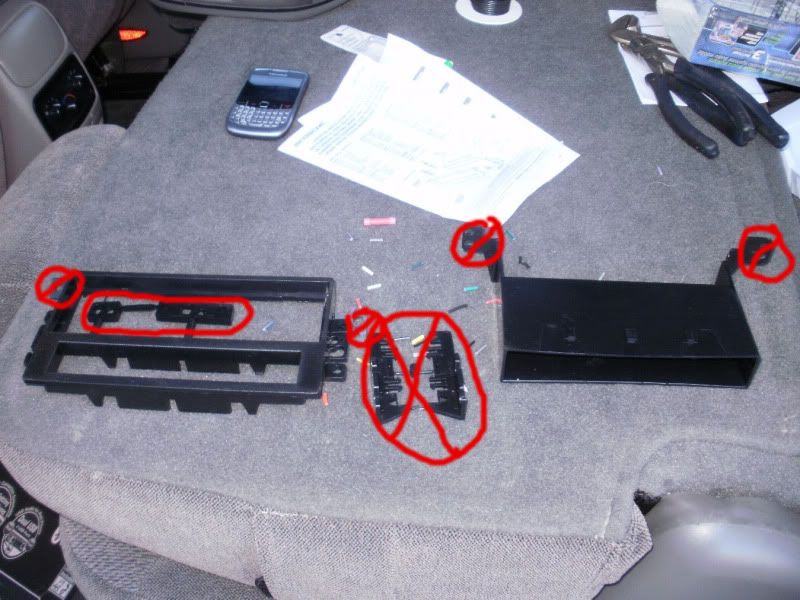

14)This is what you get in the Dash install kit. There are two spacers that are attached on the main dash face you will need to use, so don't loose them. The other clips that are semi-attached to the unit that have slashes through them in my picture need to be removed as they interfere with the install. You'll see when you try and put the unit in.

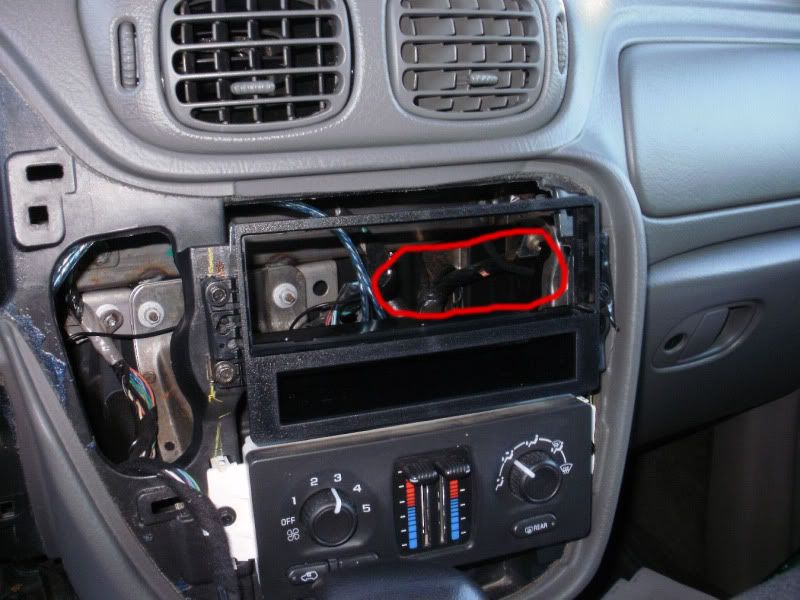

15)This is the kit put together and test fit in the vehicle. I wasn't too impressed with the fit as it seemed a little narrow for the bolt locations, however it did work. The area I circled in the picture is a nice place to fit the bulky interface brain. You can also see I strung in some RCAs for future sub install. Be careful if you're poking your hand around the backside if youre stringing any RCAs or Remote wires as the metal back there is unbelievably sharp! Don't forget the two spacers that come with the dash kit!


16) Once you've got your dash kit figured out, you can go ahead and plug the interface kit connectors to the factory connectors. Its a lot easier to install the deck to the dash kit before installing the dash kit. Here is my new JVC deck installed on the dash kit. It fit great inside the dash kit.



17) At this point the installation is reverse order in which you took it all apart.

18) Here it is! All installed! Looks and works Great!



Make sure your 4x4 switch is back in 2WD... I bumped it while taking everything apart and drove around in A4WD for a few km before realising. The stereo stays on after the engine is turned off and key is removed, until the doors open just like factory. Only difference I've noticed is that the door or key chime is slightly different and only comes out of the driver side door speaker.
I hope I didn't forget anything, but if you've got any questions I'll try my best to answer them!


·
Registered
2002 gmc envoy_slt
Joined
·
260 Posts
Hahah it looks like someone got the idea from my write up... haha I did a tutorial on how to install an aftermarket deck into an Envoy.. Pretty much exactly the same thing but for the trailblazer. Thanks for taking my ideas and thought....:x


·
Registered
2004 chevy trailblazer_ls_ext
Joined
·
27 Posts
Discussion Starter · #5 ·
Hahah it looks like someone got the idea from my write up... haha I did a tutorial on how to install an aftermarket deck into an Envoy.. Pretty much exactly the same thing but for the trailblazer. Thanks for taking my ideas and thought....:x
Really?! I honestly didn't see your post for the Envoy! I guess it slipped my mind. I'm still new to this whole Envoy/Trailblazer thing I must have completely forgotten about searching for an Envoy write up. Whats the link to your write up, I wouldn't mind checking it out!


·
Registered
2004 chevy trailblazer_ls_ext
Joined
·
27 Posts
Discussion Starter · #7 ·

·
Registered
2005 chevy trailblazer_lt
Joined
·
1,339 Posts
Good how to. Thanks for the effort.
If I was installing a stereo, I'd like to have a bunch of how to's to look at.
The TrailBlazer dash is different so it'll be beneficial to someone.


·
Registered
2002 gmc envoy_slt
Joined
·
260 Posts
Oh ya I know it is different. And about you just installing a cd player, it is virtually the same thing just instead of the double din, it is a single din. Same thing though.


·
Registered
chevy trailblazer_ls_ext
Joined
·
1 Posts
Great write up.I'm new to the forum and about to do a Pioneer AVH-P3400 BH install.If I want to add the parking brake bypass relay do I just tie the remote wire on the bypass into the blue/white remote wire and leave all blue/white wires connected or disconnect all blue/white wires and have only the bypass blue/white connected to the head unit?


·
Registered
2005 chevy trailblazer_ls
Joined
·
1 Posts
onstar bypass

i got 2005 trailblazer with onstar. can i bypass onstar some how couse i realy don't use it:confused:


·
Registered
2003 gmc envoy_sle
Joined
·
2 Posts
awesome info. Appreciate the write up. I'm doing this exactly to my bro's envoy and this is a WORLD of help.
Thank you Thank you Thank you


·
Registered
2003 chevy trailblazer_ls
Joined
·
169 Posts
thanks for the write up this will help alot but i have another question
i want to keep the door chimes and key chimes but i planning on having am amplifier hooked up to the front and rear speakers along with the sub woofer

how would i go about hooking this up?

oh i have an 2003 tb, non bose, no on star, no navi


·
Registered
2002 chevy trailblazer_ls
Joined
·
5 Posts
i just got so confused at your gauge cluster when it said 200, i was like why doesnt mine so that fast? idk why US has to be different


·
Registered
2003 chevy trailblazer_ls
Joined
·
169 Posts
i just got so confused at your gauge cluster when it said 200, i was like why doesnt mine so that fast? idk why US has to be different
US wanted to be different from the rest of the work thats why they created the imperial units where as the rest of the world is metric


·
Registered
2006 saab 9_7x
Joined
·
450 Posts
US didn't create Imperial units, they just didn't switch over when the rest of the world did, neither did Myanmar (Burma) or Liberia. The scientific and medical communities have been metric for years, maybe forever. Canada, IIRC, did it in 1974 and I still convert some things like temperature and weights and measures in my head and probably always will.


·
Registered
2003 chevy trailblazer_ls
Joined
·
169 Posts
US didn't create Imperial units, they just didn't switch over when the rest of the world did, neither did Myanmar (Burma) or Liberia. The scientific and medical communities have been metric for years, maybe forever. Canada, IIRC, did it in 1974 and I still convert some things like temperature and weights and measures in my head and probably always will.
i thought they did my bad, all i know is the metric makes more sense and its easier to understand


·
Registered
2007 chevy trailblazer_ls
Joined
·
1 Posts
I finally just put in a new JVC head unit with the Metra GMOS-01 wiring harness. So everything is connected, put the key in...the door chime is more of a dog whistle and the CD player doesn't illuminate. WTF?!?! I started pressing buttons, it's got power because I hit the eject button for a CD, other than that it doesn't work. I'm gonna be super pissed if I have to drop $60 on a new wiring harness.
Oh and the screw to turn down the chime? Doesn't work. FML :worried:
